SPECIFICATION

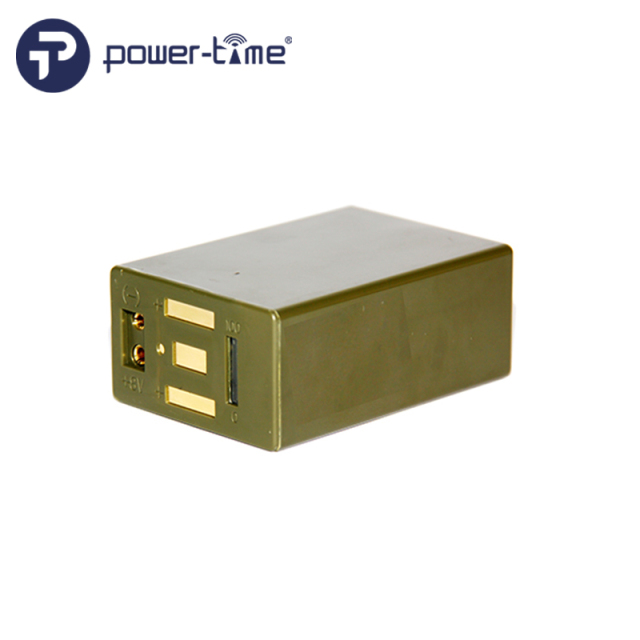

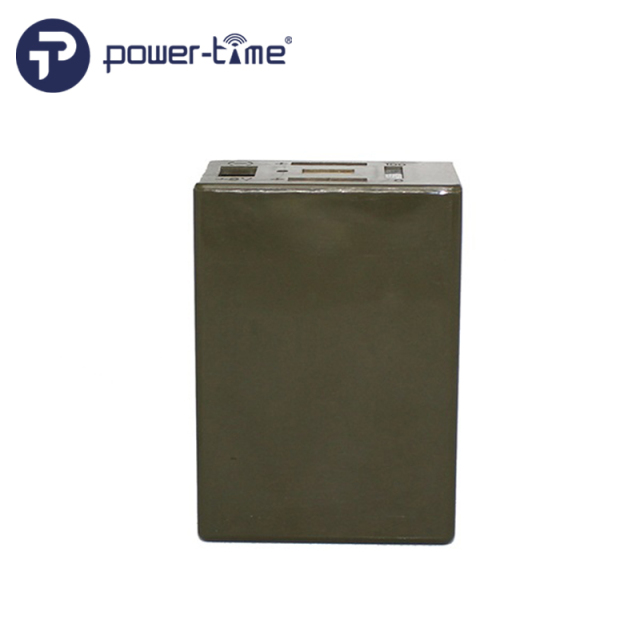

Power-Time High Capacity Lithium Battery

This battery is based on High Energy Li-ion technology. The BB-2847/U battery was designed and manufactured according to Military Standards

Advantages:
High capacity, performance verified, hermetically sealed, lithium-ion cells

Protection against short circuits and improper charge

100% final testing

Construction:

LCD hands-free fuel gage
The unit contains safety-vented cells
The battery is housed in a molded plastic case with a dual Terminal interface.

Items	Specification
Model no	PTO-2847
NSN	6140-01-493-8092
Voltage/Capacity	7.4V 6300mAh
Max Discharge current	9600mah
Max charge current	6300mah
Dimensions	653895mm
Operating Temp	-30℃ to +55℃
Storage Temp	-20℃ to +40℃
Exterior/Housing	Hard Plastic Case
State of Charge Display	5-segment LCD with constant display
Replacement for	BB-2847/U (BT-70747) BA-5347/U (BT-70478 or BT-70478A) BA-5847/U
APPLICATIONS	AN/PRM-34 (Radio Set) AN/PRS-7 (Mine Detector) AN/PAS-13 (Thermal Weapon Sight)
