SPECIFICATION

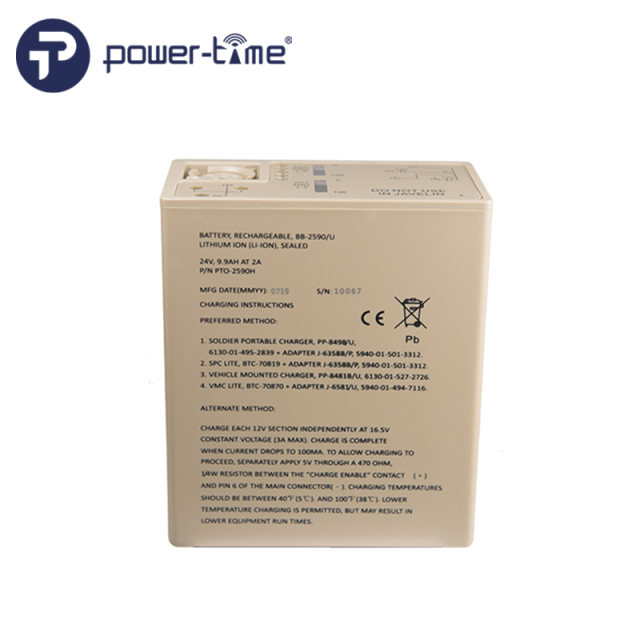

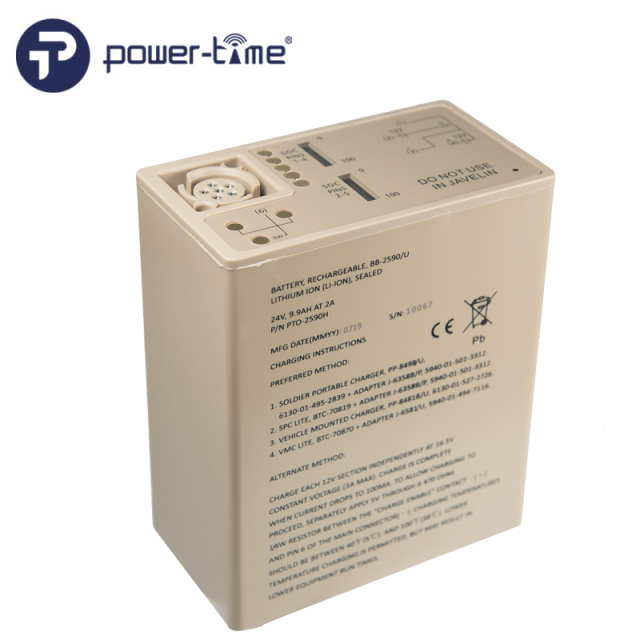

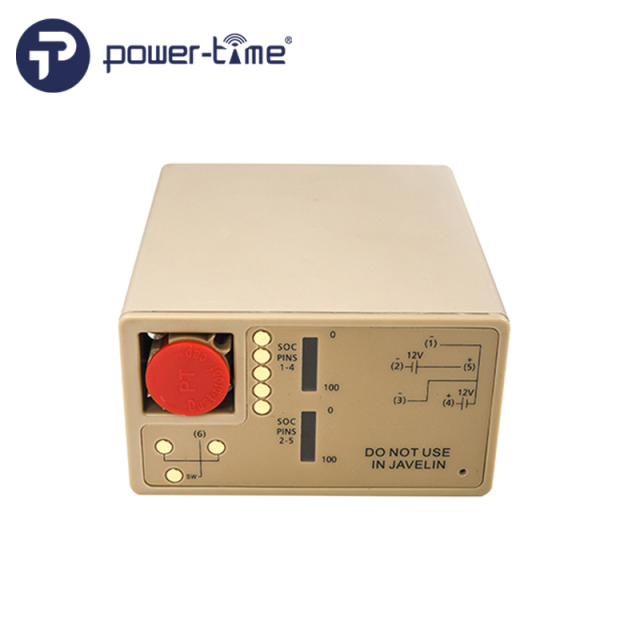

BB-2590/U Lithium-Ion high-capacity battery

It was designed according to Military standard MIL-PRF-32383

This is a high-performance rechargeable lithium Ion battery with instantaneous start-up

Advantages: 100% final testingHigh reliability due to all welded constructionProtection against short circuits and improper charge

Construction:

Dual state of charge"gas gauge"LCD displays
Durable high-impact resistant plastic housing and connector enclosure
High capacity, performance verified, hermetically sealed,lithium-Ion cells
The unit contains safety-vented cells

Items	Specification
Model no	PTO-2590H 285Wh
NSN	6140-01-553-3527
Average Voltage	Typical: 14.4V or 28.8V Final: 10.5V or 21.0V
Nominal Capacity	19.8Ah in 14.4V Mode 9.9Ah in 28.8V Mode
Pulse Capability(5 seconds)	Up to 18A continuous
Dimensions	12711261mm
Weight	1.4kg
Operating Temp	-20℃ to +55℃
Storage Temp	-30℃ to +40℃
Exterior/Housing	Hard Plastic Case
Terminals/Connect	6 pin polarized socket SC-C-179495
Absolute State of Charge Display	2 Separate 5 Segment LCDs with Constant Display
Replacement for	BB-2590/U,BB-590/U,BB-390B/U,BB-490/U,BA-5590/U,BA-5390/U,BA-3590/U
APPLICATIONS	SINCGARS&ATCS(AN/PRC-104,119),FALCON(AN/PRC138,117),Robots,Surveillance / Sensors

Other accessories for BB-2590 battery are available as below picture.
